| Standard Packaging: | It Packed in Wooden Case. |
12 Primers of 20bp within 2.5 hours Making Machine for Life Science DNA/RNA/Probes Synthesis
HY-12 OLIGO SYNTHESIZER
HY-12 Oligo Synthesizer is the best performing medium throughput oligo synthesizer on the market.
It can run with scales varing from 25nmol to 300umol, with a typical run time is less than 2.5 hours for 12 columns of DNA 20mers. It has been placed in many universities, pharmaceutical and diagnostic companies.

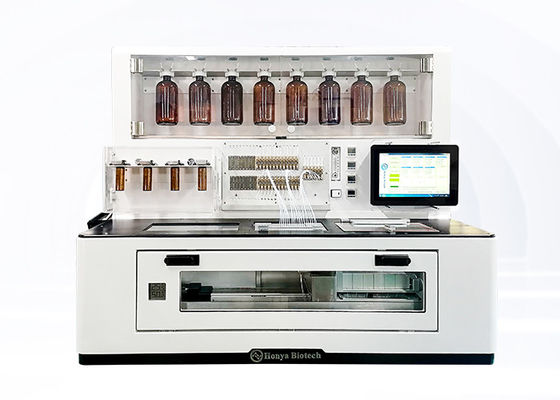

Picture Show:
Specifications:
|
Channel |
12 |
Synthesis Type |
DNA/RNA.fluorescent dyes/sulfurizing/Probe |
|
Mode |
Reagent Injection Separately |
Period(20 Mer) |
12 primers of 20bp within 2.5h |
|
Cycled Time |
4-6min |
Synthesis Scale |
25nmol-300umol |
|
Coupling Rate |
>99% |
Max Length of Primer |
120bp |
|
Bearing Method |
Synthetic column |
Wastes |
vacuum |
|
Base/Reagent Pouring Mode |
reagent injection separately |
Base/Reagent Drive Way |
press out by protected gas |
|
Amidite Position Base |
16pcs |
Reagent Position Base |
9 pcs |
|
Reagent Cylinder Configuration |
single position standard. double optional |
Reagent Bottle Size |
450ml/4L Customization |
|
Synthesis Merger Base |
Automatic merge the base |
Data Import Method |
Import the sequence automatically by Excel |
|
Gas needed |
Nitrogen or Argon |
Color |
Pure White |
|
Reagent Pipe Dimension |
OD1/8' and ID/16' |
Base Pipe Dimension |
OD1/16, ID0.8mm |
|
Outsize |
1100*710*890mm |
Package Size |
1200*810*1000mm |
|
Working Environment |
25℃±4℃ |
Relative humidity |
≤45% |
|
Power |
Single Phase/220V |
Gas needed |
Nitrogen or Argon |
Technical Advantages:
|
1 |
lightweight and modular design |
which is designed easy to add or removing modules. And optimize the configuration in future. |
|
2 |
Compact design |
which using an embedded control computer, no more space for computer, shortening half of the length than other similar synthesizer |
|
3 |
Graphical operation mode |
In the testing phase and the initial stage of synthesis, the pipeline can be tested automatically, the status of liquids, pipelines, valves, etc. |
|
4 |
Larger synthesis scale |
dual-axis motion system reduced the length of the column support plate ,also saves a lot of space to put larger scale columns. And it can synthesize 12 primers at the same time, which is twice as large as the traditional synthesizer |
|
5 |
AMI/MODIFY can be flexibly configured |
Base amidite and modified amidite can be set freely, and you can choose different Synthesis programme |
|
6 |
OXI/SUL can be configured separately |
OXI and SUL can be configured separately. |
|
7 |
Independent programme of each channel |
Each channel can select different sequence files and process parameters, which can set the initial synthesis position of the sequence and Initialization/finalization mode respectively, etc. For each channels programme can be saved, loaded, tested, and statistically analyzed. |
|
8 |
Real-time display of the synthesis process |
During the synthesis process, it can be paused manually or automatically, and then the operate the amidite and other reagent. |
|
|
